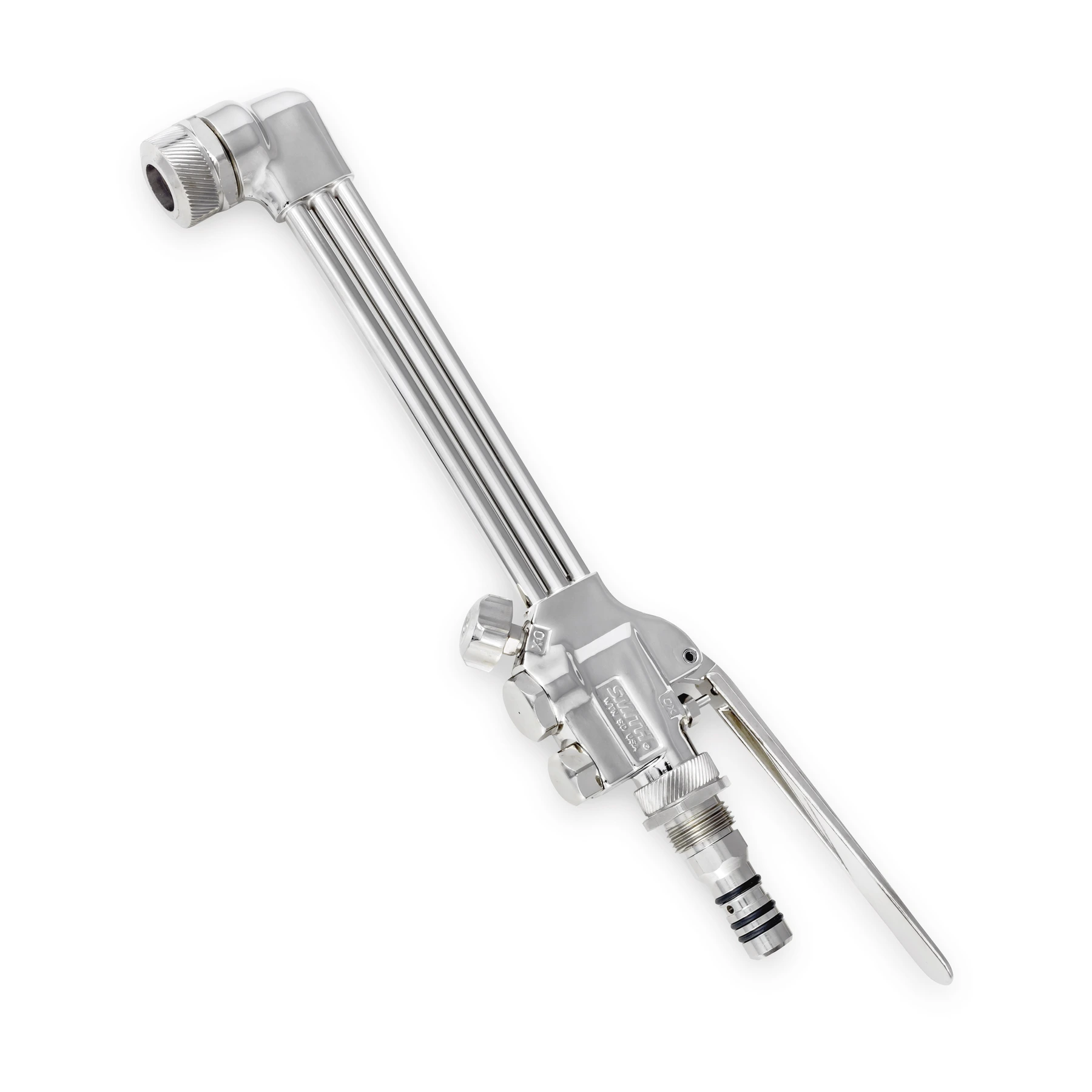

Heavy-Duty Cutting Attachment, 90 Deg. Head
SC209
Selection Option
About The Heavy-Duty Cutting Attachment, 90 Deg. Head
Ideal for heavy duty cutting requiring high gas flow. 90 degree head angle cuts up to 8-inch (203 mm) thick steel. Can be used with acetylene, propane, propylene and natural gases. For use with WH200A heavy-duty torch handle and SC series cutting tips.
Features
Silver-Brazed Nickel-Plated Torch Joints
Provides strength, leak resistance and heat deflection.
Slip-in Tip Design
No wrench is needed allowing for quick and easy tip changes.
Three Tube Construction
Keeps gases separate in the cutting attachment until mixed at the tip for safety. Mixed gas stays farthest away from the operator.
Triple O-Ring Seal
For easy 360-degree torch head rotation to reduce operator fatigue.
Flo-Trol™ Valve
Eliminates seat burn out due to reverse flow of mixed gases.
Center Pre-Heat Valve
Usage for both left and right-handed operators.
Ease-on Cutting Oxygen Valve
Allows for smooth application of cutting oxygen reducing keyholing and slag blowback when piercing.
