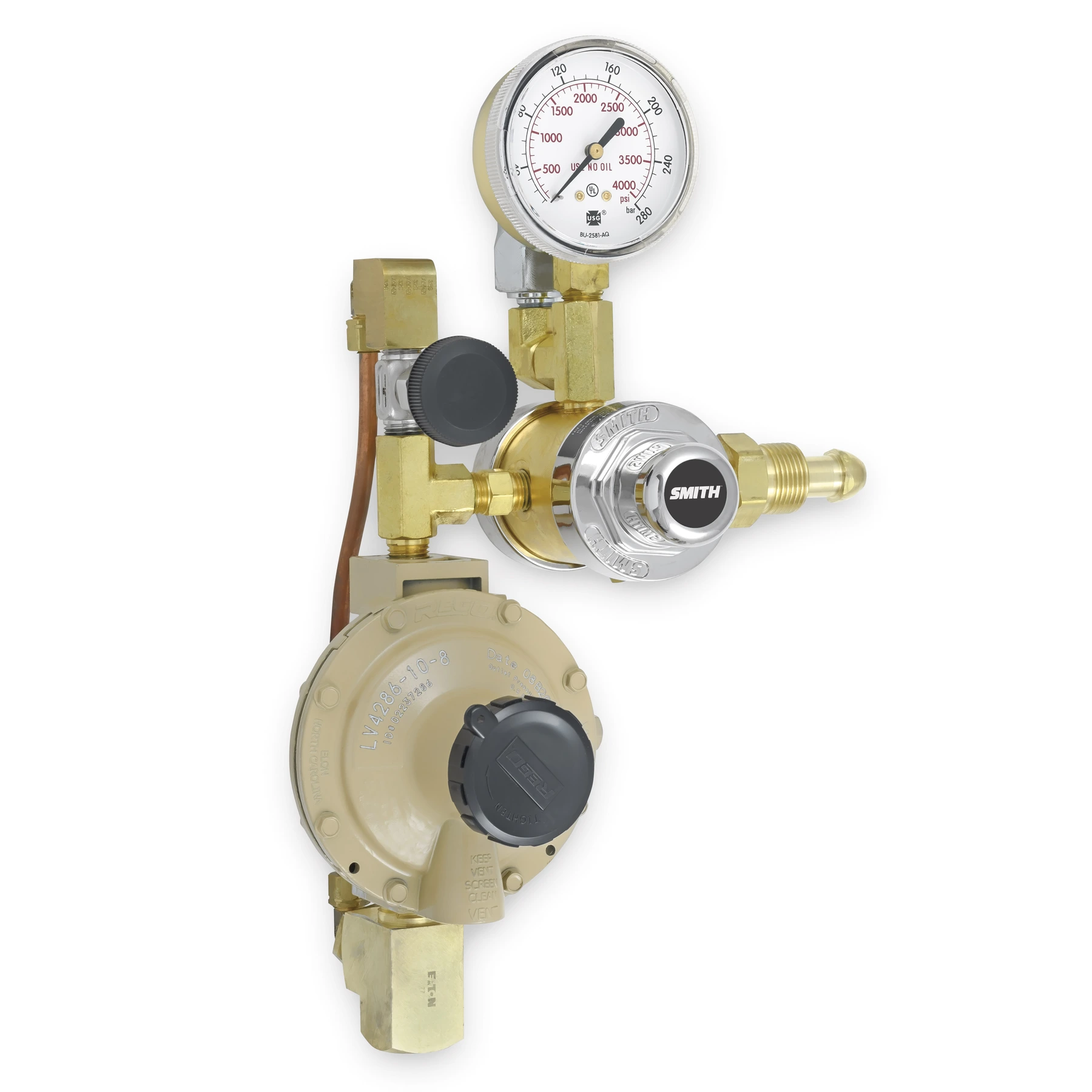

Low-Pressure Three-Stage Nitrogen Blanketing Regulator with Switch, .5 PSIG
16347-3
Selection Option
About The Low-Pressure Three-Stage Nitrogen Blanketing Regulator with Switch, .5 PSIG
Preset regulator designed to deliver a highly accurate and consistent 0.50 PSIG supply of nitrogen to the head space of oil-filled power transformers. Features a pressure switch preset at 250 PSIG and adjustable from 70-300 PSIG. 6 PSIG (0.41 bar) 2nd stage. 0.5 PSIG (0.03 bar) 3rd stage.
Features
Pressure Switch
Alerts when cylinder is low. Factory set at 250 psig (17 bar).
Stainless Steel Diaphragm
Resists corrosion, leaking and freeze-up if used with liquid gases for extended service life.
Adjusting Screw with Protective Cap
Prevents tampering.
Nickel Plated Brass Bonnet and Stainless Steel Body
Protects against corrosion
Document Accordion
Tech Specifications
Discover technical info about this product
