General Purpose Line Regulator, 200 PSIG
103-0000
Selection Option

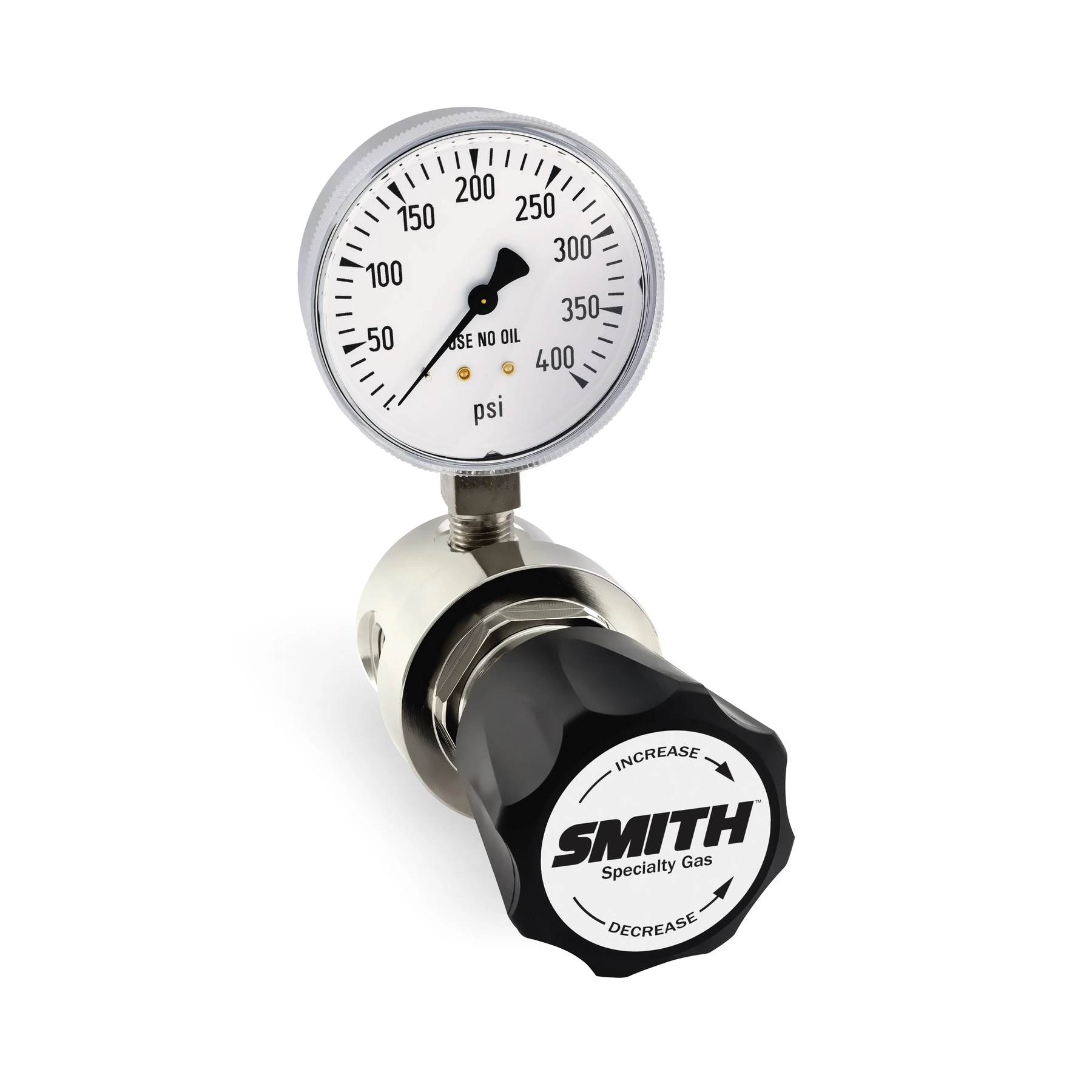

About The General Purpose Line Regulator, 200 PSIG
200 PSIG General Purpose Line Regulator for pressure control of non-corrosive inert pure and mixed gas applications where elastomeric outgassing is not critical such as laboratory or plant use. No inlet or outlet connection.
Features
Neoprene Composite Diaphragm
Highly durable neoprene composite diaphragm offers precise adjustment of outlet pressure and extended service life.
Shatter-Resistant Gauge Lenses
Series 40 Heavy Duty Regulators feature easy to read gauges made from corrosion resistant polished brass and shatter-resistant polycarbonate lenses.
Sure-Seat™ filtered high-pressure seat assembly
Series 20™ single-stage regulators are extremely durable and contain our exclusive Sure Seat™ filtered seat technology. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime.
Nickel Plated Brass Bonnet and Stainless Steel Body
Protects against corrosion
Tapped Body
Allows for rear panel mounting
